Kuvaus

Reference: 226121A

Product name: Full suspension bush kit SPORT

Fits to:

• Audi A3  I (96-03) 8L Quattro
• Audi S3 I (96-03) 8L
• Audi TT 8N (99-06) Quattro
• Seat Leon I (99-05) 1M 4×4
• Seat Leon I (99-05) 1M Cupra R 4×4
• Škoda Octavia I (96-10) 1U 4×4
• Volkswagen Bora I (98-05) 1J 4Motion
• Volkswagen Golf IV (97-10) 1J 4motion
• Volkswagen Golf IV (02-03) 1J R32
• Volkswagen New Beetle (97-10) RSi

Include:

• 2x 221072A: Front wishbone – front bush 30mm SPORT
  or
• 2x 221343A: Front wishbone – front bush 45mm SPORT

• 2x 221077A: Front wishbone – rear bush SPORT
  or
• 2x 221344A: Front wishbone – rear bush SPORT

• 2x 221088A: Front anti roll bar bush SPORT
  or
• 2x 221089A: Front anti roll bar bush SPORT

• 0/4x 221084A: Anti roll bar link bush SPORT
• 2x 021784A: Front subframe bush SPORT
• 4x 221371A: Rear wishbone inner bush SPORT
• 4x 221940A: Rear tie bar to hub bush SPORT
• 2x 221372A: Rear lower wishbone front mounting bush SPORT
• 2x 221445A: Rear anti roll bar bush SPORT
• 2x 221862A: Rear diff mount – front bush SPORT
• 2x 221863A: Rear diff mount – rear bush SPORT
• 4x 221864A: Rear subframe bush SPORT
• 1x 221965A: Steering rack mount bush SPORT
• 0/2x 221899A: Front shock top mount bush SPORT

Diagrams:

• D0208
• D2203
• D2207

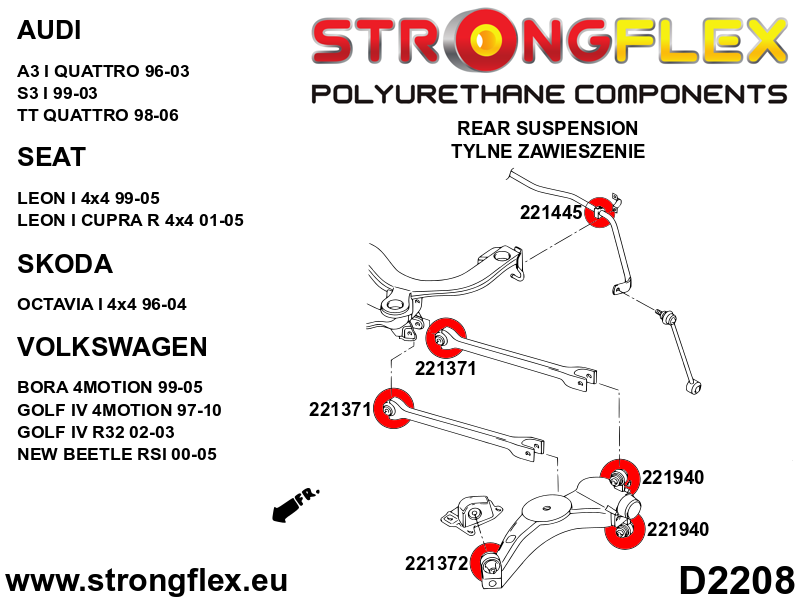

• D2208
• D2216
• D2223
• S2201
• S2202

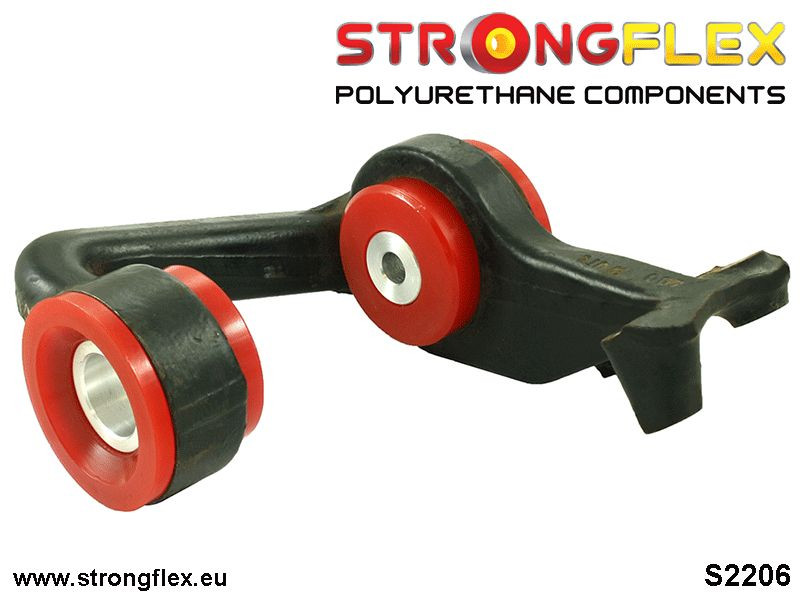

• S2206
• S2207

Notes

• In models in which ”cast steel” wishbones were installed, there are two types of front wishbone bushings.
  Earlier models were equipped with sleeves with a diameter of Ø30mm (221072), while later models had sleeves with a diameter of Ø45mm (221343). The rear bushing for this control arm is 221344.
  For ”stamped steel/sheet metal” wishbones, matching bushings are: 221072 and 221077.
  Before placing an order, please check the type of swing arm carefully. In the case of a ”steel cast” swing arm, also check the diameter of the front bush (See photo S2201)!

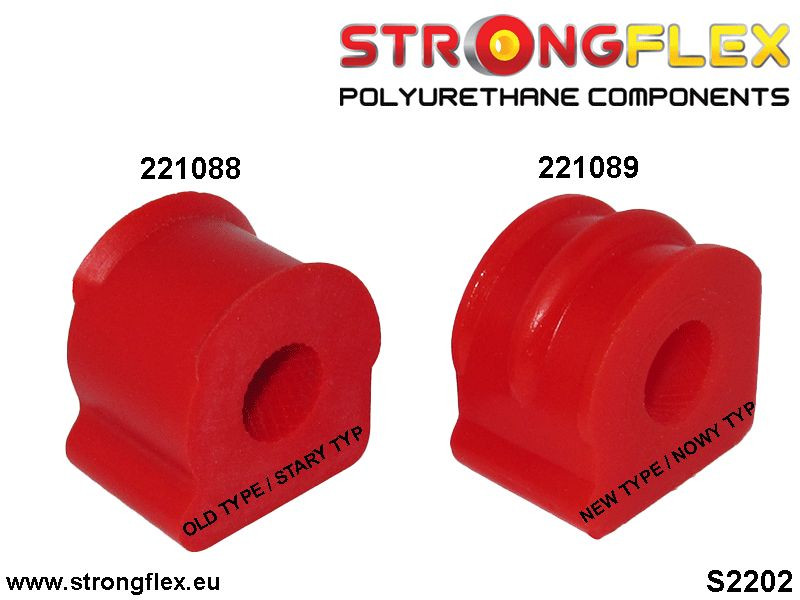

• There are two types of front stabilizer bushings.
  OLD TYPE – 221088 or NEW TYPE – 221089
  See photo S2202
• Depending on the type of front stabilizer link, select the correct number of bushings 221084 (0 or 4 pieces)
• Front shock top mount bush 221899A:
  Depending on your needs, choose the appropriate quantity 0pcs / 2pcs.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 29/31/33/35

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
