Reference: 036145A

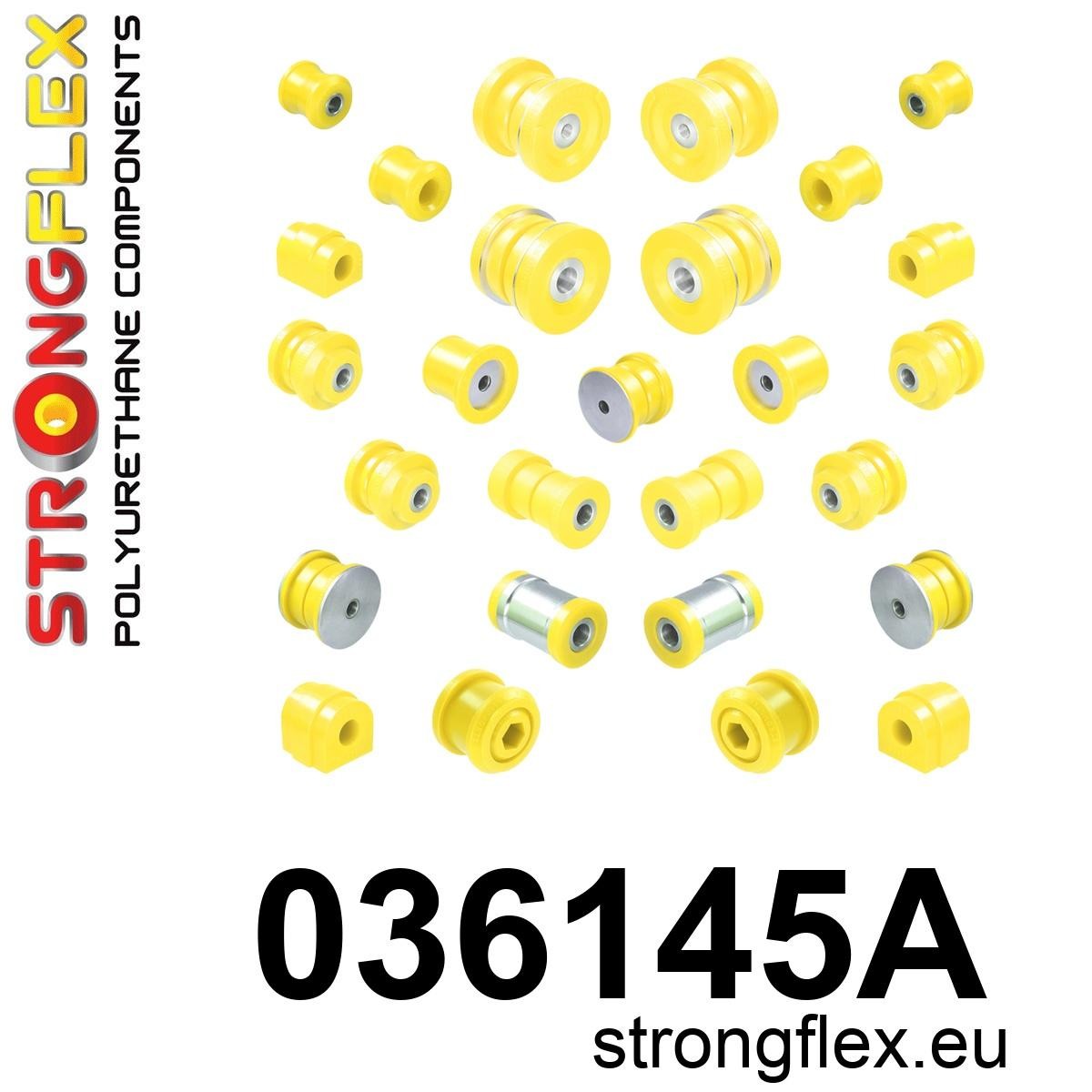

Product name: Full suspension bush kit SPORT

Fits to:

• BMW Series 3 IV (98-07) E46 Compact
• BMW Series 3 IV (98-07) E46 RWD
• BMW Series 3 IV (98-07) E46 XI / XD
• BMW Z4 I (02-08) E85 / E86

Include:

• 2x 031248A: Front anti roll bar bush SPORT
• 2x 031516A: Front wishbone bush – centric 60mm SPORT
• or
• 2x 031517A: Front wishbone bush – centric 66mm SPORT
• or
• 2x 031518A: Front wishbone bush – eccentric 66mm SPORT
• or
• 2x 031520A: Front wishbone bush – 4×4 xi, xd SPORT
• 2x 031173A: Rear trailing arm front bush SPORT
• 2x 031174A: Rear control arm upper inner SPORT
• 2/4x 031175A: Rear arm – outer bush SPORT
• 2x 031176A: Rear control arm lower inner SPORT
• 2x 031167A: Anti roll bar bush front / rear SPORT
• 2x 031413B: Rear subframe front bush
• or
• 2x 031413A: Rear subframe front bush SPORT
• 2x 031414B: Rear subframe rear bush
• or
• 2x 031414A: Rear subframe rear bush SPORT
• 2x 031751A: Rear differential front mount bush SPORT
• 1x 031752A: Rear differential rear mount bush SPORT
• 2x 031962A: Rear anti roll bar link to anti roll bar bush SPORT
• 2x 031963A: Rear anti roll bar link to arm bush SPORT

Diagrams:

• D0319
• D0320
• D0322
• S0345
• S0346
• S0349

Notes

• Front wishbone bush – rear: 031516 – centric 60mm 031517 – centric 66mm 031518 – eccentric 66mm 031520 – 4×4 versions XI XD
• Rear subframe bushings 031413 and 031414: Choose the appropriate hardness 80ShA (red) / 90ShA (yellow).
• Before installing the 90ShA (yellow) bushings, we recommend reinforcing the beam with additional welding or spacers. The original beam without reinforcements may be damaged during ”aggressive driving”.
• For bushing 031175: This bushing is not suitable for the upper steering knuckle mount on significantly lowered vehicles with a modified steering knuckle angle. Select the appropriate quantity: 2 or 4 pieces.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 25/27

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
